Salt bath heat treatments especially for products that require the ultimate in quality performance
1. Materials to be treated and types of heat treatment
- Quenching and tempering of high-speed steels, die steels, martensite stainless steels, carbon tool steels, alloy tool steels, structural steels, bearing steels and spring steels
- Solution heat treatment of austenitic stainless steels
- Aging treatment of maraging steels and precipitation hardening treatment of precipitation-hardened alloy
- Sub-zero treatment and cryogenic treatment of each material

2. Available size and weight
- Materials smaller than the largest furnace (a width of 450 mm, depth of 450 mm and length of 1500 mm) and weigh up to around 500 Kg
- Please let us know beforehand any material weighing over 500 Kg.
- If the length of a material exceeds 1,300 mm, its other sides must be shorter than the above dimensions. Please let us know in advance.

3. Facilities
Facility Name Normal Degrees Dimension Number of Equipment

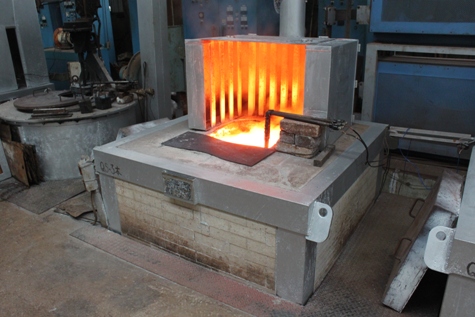

Salt bath for quenching Max. 1300・C 450 X 450 X 1500 (H) 4
Salt bath for quenching Max. 900・C 450 X 450 X 1500 (H) 5
Salt bath for quenching 500 - 550・C 500 (diameter) X 1500 (H) 3
Salt bath for quenching
and for tempering
140 - 500 ・C 400 X 700 X 800 (H) 4
Salt bath for tempering 500 - 650 ・C 500 (diameter) X 1000 (H) 5

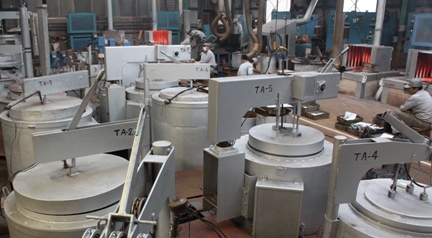

Hot air furnace for tempering Max. 650・C 500 (diameter) X 1500 (H) 9


Quenching   Tempering   Straightening

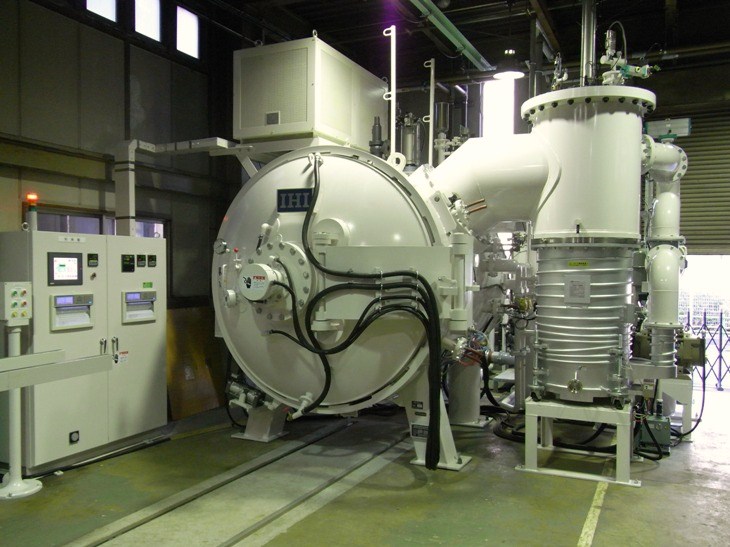

Heat treatments using vacuum furnaces especially for products that require bright finish
1. Materials to be treated and types of heat treatment
- Quenching and tempering of high-speed steels, die steels, martensite stainless steels - Solution heat treatment of austenitic stainless steels - Aging treatment of maraging steels and precipitation hardening treatment of precipitation-hardened alloy - Annealing and straightening of various materials - Sub-zero treatment and cryogenic treatment of each material

NQPC-60/60/100(S6)


2. Available size and weight
- Materials that can be put in equipment with the size of W600 mm x L1000 mm x H400 mm.
3. Facilities
Facility Name Normal Degrees Dimension Number of Equipment
NQPC-60/60/100(S6)
(1-chamber type pressurized cooling)
Max. 1250・C W600×L1000×H600 1
FHH-60GHS
(2-chamber type pressurized cooling)
Max. 1250・C W600 XL 900 XH 400 1
FHH-45GH
(2-chamber type pressurized cooling)
Max. 1250・C W450 X L675 XH 300 1
VFC-224 Max. 1000・C W310 X W560 X W200 1
